Easily Upgrade to the Quad Core CPU without  Additional Mechanism Rebuilding Costs

1. Upgradeable CPU Performance   Easy upgrade options from existing platforms featuring Intel® 945G 65nm dual core processor to Intel® 65nm/45nm quad core extreme performance platforms, meeting the needs of a wide range of intensive applications, and without the need to modify your system mechanism.

2. Effective and Low Voltage DDR3 SDRAM Support   Memory Type DDR SDRAM DDR2 SDRAM DDR3 SDRAM Prefecth 2-bit 4-bit 8-bit Transfer Rate DDR-200 ~ DDR-400 DDR2-400 ~ DDR2-800 DDR3-800 ~ DDR3-1600 Core Voltage 2.5 V 1.8 V 1.5 V

Touch Enabled Second Display

The PPC touch driver supports secondary display touch function. Just connect the VGA and RS-232 cable to the second monitor (AFOLUX monitor), doing calibration and you will get the dual touch experience and improve work efficiency.

PCI/PCIe Expansion Capability

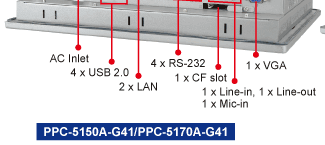

I/O Interface

Specifications

Model PPC-5150A-G41 PPC-5170A-G41 PPC-5190A-G41 Display LCD Size 15" 17" 19" Max Resolution 1024(W) x 768(H) 1280(W) x 1024(H) 1280(W) x 1024(H) Brightness (cd/m2) 350 380 450 Contrast Ratio 700:1 1000:1 1000:1 LCD Color 16.2M 16.7M 16.7M Pixel Pitch (mm) 0.297(H) x 0.297(V) 0.264(H) x 0.264(V) 0.294(H) x 0.294(V) Viewing Angle (V-H) 125°/140° 160°/170° 160°/170° Backlight MTBF (hrs) 50,000 50,000 50,000 Motherboard SBC Model POS-G41 CPU LGA 775 Intel® Core™ 2 Extreme/Quad/Duo, Celeron with a 1333/1066/800MHz FSB support Chipset Intel® G41 + Intel® ICH7 RAM Supports two 800/1066MHz DDRIII DIMM (4GB Max.) I/O Ports and Switches 4 x RS232 COM port 4 x RS232 COM port 4 x RS232 COM port 1 x RS-232/422/485 port 1 x RS-232/422/485 port 1 x RS-232/422/485 port 2 x RJ-45 for LAN port 2 x RJ-45 for LAN port 2 x RJ-45 for LAN port 4 x USB 2.0 4 x USB 2.0 6 x USB 2.0 1 x VGA Port 1 x VGA port 1 x VGA port 1 x Audio (Line-in, Line-out, MIC-in) 1 x Audio (Line-in, Line-out, MIC-in) 1 x Audio (Line-in, Line-out, MIC-in) 1 x LPT 1 x LPT 1 x LPT 1 x PS/2 (KB/MS) 1 x PS/2 (KB/MS) 1 x PS/2 (KB/MS) 1 x Power switch 1 x Power switch 1 x Power switch 1 x AT / ATX switch 1 x AT / ATX switch 1 x AT / ATX switch Driver Bay HDD Driver Bay 1 x 2.5 SATA/IDE HDD bay with anti-shock SSD CF type II CD-ROM Driver Bay Slim type CD-ROM bay Extension Slot Either 1 x PCI slot or 1 x PCIe x1 slot (Optional riser card) 1 x PCIe Mini card Physical Construction Front Panel Aluminum Construction Chasis Heavy-duty steel Mounting Front Panel Color Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm Silver (Pantone 8001C) Dimensions (WxHxD) (mm) 410 x 309 x 110.5 452 x 356 x 115 483 x 399 x 115.2 Net Gross Weight 7 Kg / 11 Kg 8 Kg / 12 Kg 12.6 Kg / 18.2 Kg Operation Temperature (°C) -10°C ~ 50°C -10°C ~ 50°C -10°C ~ 50°C Environment Storage Temperature (°C) -20°C ~ 60°C -20°C ~ 60°C -20°C ~ 60°C Vibration 5 ~ 17Hz, 0.1 double amplitude displacement 17 ~ 640Hz, 1.5G acceleration peak to peak Shock 10G acceleration part to part (11ms) Touch Screen Resistive type 5-wire with RS-232 interface Power Supply AC Input AC Input ATX power supply - P/N: ACE-A622A-RS - 220W power supply - Input: 90VAC~264VAC, 50/60Hz - Output (max.): 3.3A@14A, 5V@16A, 12V@10A, -12V@0.8A DC Input DC Input ATX power supply - P/N: ACE-4520C-RS - 200W power supply - Input: 24 VDC(18~36 VDC) - Output (max.): 3.3A@12A, 5V@12A, 12V@15.4A, -12V@0.5A
